压缩机概述

压缩机概述

压缩机机架类型

PPC Ersatzteil ATP Type Frame

ATP

Single-throw | Straight-line | Splash-lube
Stroke5"7"9"11"13"
Connecting Rod12.50"15.00"20.00"25.00"30.00"
Max. allow Road Load (LBS)3,5005,00010,00017,00023,000
Frame Loading Capability4,2006,00012,00020,00027,500
Max. RPM600500450400327
Piston Speed at max. RPM500583675733708
Piston Rod dia. Main1-3/8"1-3/8"1-3/4"2-1/4"2-1/2"
Piston Rod dia. Tandem1-1/8"1-1/8"1-1/4"1-1/2"1-3/4"
Nominal BHP Rating3550100170250

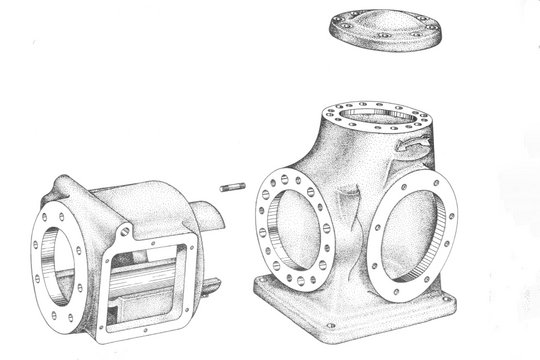

PPC Ersatzteil F Type Frame

F

Single-throw | Straight-line | Forced-lube
Stroke5"7"9"
Connecting Rod11.25"15.75"20.25"
Max. allow Road Load (LBS)5,00011,00018,000
Frame Loading Capability6,00013,00021,500
Max. RPM729600514
Piston Speed at max. RPM600700771
Piston Rod dia. Main1-1/2"1-3/4"2-1/4"
Piston Rod dia. Tandem1"1-1/4"1-1/2"
Nominal BHP Rating50100150

PPC Ersatzteil HOF Type Frame

HOF

Two-throw | Ball-opposed | Forced-lube
Stroke7"9"
Connecting Rod15.75"20.25"
Max. allow Road Load (LBS)11,00018,000
Frame Loading Capability13,00021,500
Max. RPM600514
Piston Speed at max. RPM700771
Piston Rod dia. Main1-3/4"2-1/4"
Piston Rod dia. Tandem1-1/4"1-1/2"
Nominal BHP Rating200450
PPC Ersatzteil Two Throw

HOFP

Two-throw | Ball-opposed | Forced-lube
Stroke9"
Connecting Rod20.25"
Max. allow Road Load (LBS)18,000
Frame Loading Capability21,500
Max. RPM514
Piston Speed at max. RPM771
Piston Rod dia. Main2-1/2"
Piston Rod dia. Tandem1-1/2"
Nominal BHP Rating450

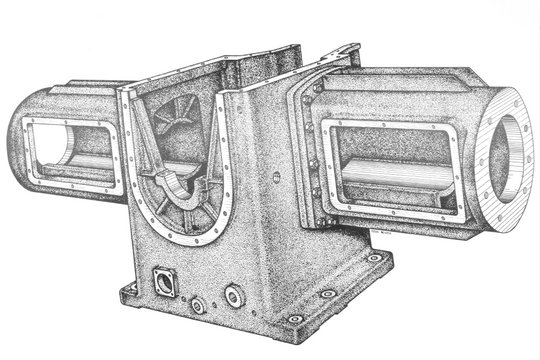

PPC Ersatzteil HOF Type Frame
HOE
2 &4 throw | Ball-opposed | Forced-lube
Stroke9"11"
Connecting Rod27.50"27.50"
Max. allow Road Load (LBS)25,00050,000
Frame Loading Capability30,00060,000
Max. RPM514450
Piston Speed at max. RPM771825
Piston Rod dia. Main3"2-1/4"
Piston Rod dia. Tandem1-1/4"2-1/4"
Nominal BHP Rating2-900, 3-1200, 4-15002-1500, 3-2000, 4-2500
